Crossline Open

Vélo tout chemin électrique, avec cadre ouvert

Choose my model Configure my bike

Configure

VAE tout chemin et léger

Découvrez le Crossline Open, le vélo électrique qui combine élégance et praticité avec son cadre ouvert à enjambement facile. Idéal pour les déplacements du week-end et quotidiens, ce vélo léger et maniable vous permet de monter et descendre en toute simplicité, sans sacrifier le plaisir de rouler. Équipé du moteur Mahle X30, il offre une assistance douce et fluide, tout en conservant la sensation d’un vélo traditionnel. Avec un poids réduit, le Montmartre Open est conçu pour s’adapter à votre style de vie actif, offrant confort et polyvalence pour les balades à la campagne, les sorties urbaines et pour le vélotaf .

Configure

Select your model

Crossline Open M2

Frameset

Origine

Crossline Open

Derailleurs

Shimano

Cues 1x11v

Crankset

Shimano

Cues 6000 40d

Cassette

Shimano

Cues 11v 11-50

Wheelset

Prymahl

Orion A22 R X30

Seat post

Uno

Monobloc 27.2 350mm

Handlebar

Ritchey

MTN Rizer Comp 580

Stem

Ritchey

Switch Comp RL1 (semi-intégrée)

Prix : 3 012 € Poids : 14 345 g

See the model

Configure

Crossline Open M1

Frameset

Origine

Crossline Open

Derailleurs

Shimano

Cues 1x9v

Crankset

Shimano

Cues 6000 40d

Cassette

Shimano

Cues 9v 11-46

Wheelset

Prymahl

Orion A22 R X30

Seat post

Uno

Monobloc 27.2 350mm

Handlebar

Ritchey

MTN Rizer Comp 580

Stem

Ritchey

Switch Comp RL1 (semi-intégrée)

Prix : 2 809 € Poids : 14 036 g

See the model

Configure

Crossline Open M3

Frameset

Origine

Crossline Open

Derailleurs

Sram

Apex XPLR AXS 1x12v

Crankset

Sram

Apex 12v 40D

Cassette

Sram

Apex 12v AXS XPLR 11-44

Wheelset

Prymahl

Orion A22 R X30

Seat post

Uno

Monobloc 27.2 350mm

Handlebar

Ritchey

MTN Rizer Comp 580

Stem

Ritchey

Switch Comp RL1 (semi-intégrée)

Prix : 3 680 € Poids : 13 919 g

See the model

Configure

Photo gallery

Technological benefits

Crossline

The Crossline, an electric hybrid bike, embodies the perfect balance between performance, technology, and elegance. Even without electric assistance, it is a highly efficient, lightweight, and smooth bike, where the Mahle X30 motor is discreet both in terms of its weight and its lack of rolling resistance. The electric assistance is there to give you that little extra boost to climb a steep hill, keep up with traffic in the city, or simply transform your rides on the trails into a smooth and enjoyable experience.

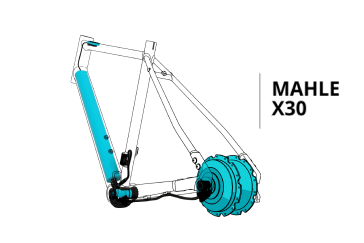

Mahle X30

We decided to equip the Crossline with a 250Wh Mahle X30 motor with 45nm torque. One of the major advantages of this hub motor is that there is no friction, which significantly reduces energy consumption and, without assistance, makes pedaling feel just like riding a traditional bike. No more power is needed to cover distances similar to bikes that are twice as heavy and require powerful, high-torque motors. And if you need even more range, you can add an additional battery.

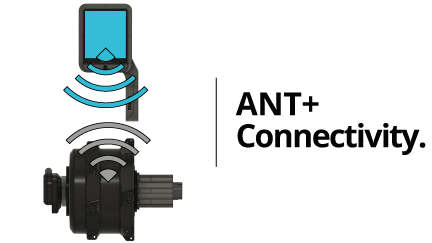

Cutting-edge technologies

With its ANT+ connectivity, the system can connect directly to your GPS via a dedicated app and adjust the assistance according to the difficulty of the terrain, your heart rate, and the power you are generating.

Hand-painted in our workshops

Origine frames and forks are painted in our workshops in northern France. We have chosen to use only water-soluble automotive-grade paints. The impact and abrasion resistance is significantly higher than that of frames painted in Asia, and the environmental impact is greatly reduced. Like all Origine products, it comes with a lifetime warranty and is fully customizable in the Configurator to suit the tastes and expectations of all enthusiasts.

Technical specifications

Motor: Mahle X30
Battery: 250 Wh
Removable Range Extender battery option 171 Wh
Torque: 45 Nm
Headset: IS52/28.6 - IS52/40
Bottom bracket: PF86
Seatpost: 27.2 mm
Max tire size: 700 x 40 mm
Material: 6061-T6 aluminum
Brakes: Front: Flat Mount 160/180 mm
Rear: Flat Mount 160/180 mm
Axles: 12x100 front
Axle type: Bolted motor axle
Bolted rear
Bottle cage mounts: 2
Options: Kickstand / Luggage rack / Lights

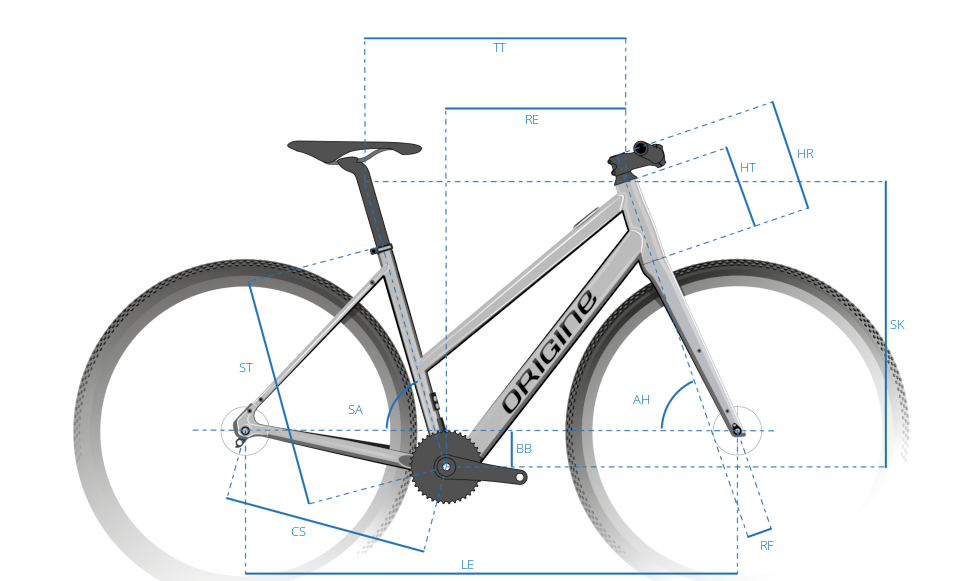

Geometries

		S		M		L
ST	Seat Tube length	440		480		510
TT	Horizontal length	525		540		555
HT	Head tube length	185		205		225
HR	Fork steerer standard length	270		290		310
HR	Fork steerer length range	From 240 to 275		From 260 to 295		From 280 to 300
SA	Seat tube angle	74.5		74.5		74.5
AH	head tube angle	68.5		68.5		68.5
CS	Chain stays length	455		455		455
SK	Stack	591		610		629
RE	Reach	361		371		381
BB	BB Drop	70		70		70
LE	Wheels base	1070		1087		1104
RF	Fork rake	50		50		50
Stem Switch Comp RL1 (semi-intégrée)
Cyclist size		From 152 to 161	From 162 to 167	From 168 to 171	From 172 to 175	From 176 to 179	From 180 to 185
Stem Length		60	80	80	90	90	100
Handlebar width		580	580	580	580	580	580
Crank length		170	170	170	175	175	175
